violin(data, grp=[]; pos=nothing, kwargs...)

keywords: GMT, Julia, statistical plots

Draw a violin plot that is similar to a box plot, with the addition of a kernel density plot on each side. The input data can take several different forms.

violin(data::AbstractVector{<:Real}; kwargs...)

Draws a single violin. Options in kwargs provide fine settings for the violin

  • boxplot: Logical value indicating whether to add boxplots on top of the violins. When the violins are color painted, adding boxplots adds them in light gray.

  • boxwidth or cap: Sets the the boxplot width and, optionally, the cap width. Provide info as boxwidth="10p/3p" to set the boxwidth different from the cap's. Note, however, that this requires GMT6.5. Previous versions do not destinguish box and cap widths.

  • fill: If fill=true paint the box with the first color of a pre-defined color scheme. Otherwise, give a color to paint the box.

  • horizontal or hbar: Logical value indicating whether to plot horizontal instead of vertical boxplots.

  • notch: Logical value indicating whether the box should have a notch (needs GMT6.5).

  • nbins: points are queried between MIN(Y[:]) and MAX(Y[:]) where Y is the vector data.

  • bins: Calculates the density for the query points specified by BINS. The values are used as the query points directly. Default is 100 points.

  • bandwidth: uses the 'bandwidth' to calculate the kernel density. It must be a scalar. BINS may be an empty array in order to use the default described above.

  • kernel: Uses the kernel function specified by KERNEL to calculate the density. The kernel may be: 'Normal' (default) or 'Uniform'

  • outliers: If other than a NamedTuple, plots outliers (1.5IQR) with the default black 5pt stars. If argument is a NamedTuple (marker=??, size=??, color=??, markeredge=??), where marker is one of the plots marker symbols, plots the outliers with those specifications. Any missing spec default to the above values. i.e outliers=(size="3p") plots black 3 pt stars.

  • scatter: Logical value indicating whether to add a scatter plot on top of the violins (and boxplots) If arg is a NamedTuple, take it to mean the same thing as described above for the outliers.

  • weights: Array giving the weights for the data in data. The array must be the same size as data.

  • region or limits: By default we estimate the plotting limits but sometimes that may not be convenient. Give a region=(xmin,xmax,ymin,ymax) tuple if you want to control the plotting limits.

  • ticks or xticks or yticks: A tuple with annotation location and label. E.g. xticks=([2], ["Ab"]) where first element is an AbstractArray and second an array or tuple of strings or symbols.

violin(data::AbstractVector{<:Real}, grp::AbstractVector, ...) Use the categorical vector (made of integers or text strings) grp break down a the data column vector in cathegories (groups).

violin(data::AbstractMatrix{<:Real}; pos=Vector{<:Real}, ...) where pos is a coordinate vector (or a single location when data is a vector) where to plot the boxes. Default plots them at 1:nboxes or 1:ngroups.

violin(data::GMTdatset{<:Real}; pos=Vector{Real}(), ...) Like the above case but the input data is stored in a GMTdataset

violin(data::Vector{Vector{<:Real}}; pos=Vector{Real}(), ...) Similar to the Matrix case but here each data vector used to compute the statistics can have a different number of points. There will be as many boxplots as length(data)

violin(data::Array{T<:Real,3}; pos=Vector{Real}(), groupwidth=0.75, ccolor=false, ...) Draws G groups of violins of N columns boxes.

  • groupWidth: Specify the proportion of the x-axis interval across which each x-group of boxes should be spread. The default is 0.75.

  • ccolor: Logical value indicating whether the groups have constant color (when fill=true is used) or have variable color (the default).

  • fill: If fill=true paint the boxes with a pre-defined color scheme. Otherwise, give a list of colors to paint the boxes.

  • fillalpha: When the fill option is used, we can set the transparency of filled violins with this option that takes in an array (vec or 1-row matrix) with numeric values between [0-1] or ]1-100],

where 100 (or 1) means full transparency.

  • pos: a coordinate vector where to plot the boxes. Default plots them at 1:nboxes or 1:ngroups.

  • split: If true, the groups that have two elements will be plotted with the left-side of one and the right side of the other. For groups that have other number of elements this option is ignored.

  • ticks or xticks or yticks: A tuple with annotations interval and labels. E.g. xticks=(1:5, ["a", "b", "c", "d"]) where first element is an AbstractArray and second an array or tuple of strings or symbols.

  • separator: If = true plot a black line separating the groups. Otherwise provide the pen settings of those lines.

violin(data::Vector{Vector{Vector{<:Real}}}, ...) Like the above but here the groups (length(data)) can have a variable number of elements and each have its own size.

This module is a subset of plot. So not all (fine) controlling parameters are not listed here. For the finest control, user should consult the plot module.


  • B or axes or frame
    Set map boundary frame and axes attributes. Default is to draw and annotate left, bottom and vertical axes and just draw left and top axes. More at frame

  • R or region or limits : – limits=(xmin, xmax, ymin, ymax) | limits=(BB=(xmin, xmax, ymin, ymax),) | limits=(LLUR=(xmin, xmax, ymin, ymax),units="unit") | ...more
    Specify the region of interest. More at limits. For perspective view view, optionally add zmin,zmax. This option may be used to indicate the range used for the 3-D axes. You may ask for a larger w/e/s/n region to have more room between the image and the axes.

  • U or time_stamp : – time_stamp=true | time_stamp=(just="code", pos=(dx,dy), label="label", com=true)
    Draw GMT time stamp logo on plot. More at timestamp

  • V or verbose : – verbose=true | verbose=level
    Select verbosity level. More at verbose

  • X or xshift or x_offset : xshift=true | xshift=x-shift | xshift=(shift=x-shift, mov="a|c|f|r")
    Shift plot origin. More at xshift

  • Y or yshift or y_offset : yshift=true | yshift=y-shift | yshift=(shift=y-shift, mov="a|c|f|r")
    Shift plot origin. More at yshift

  • figname or savefig or name : – figname=name.png
    Save the figure with the figname=name.ext where ext chooses the figure image format.

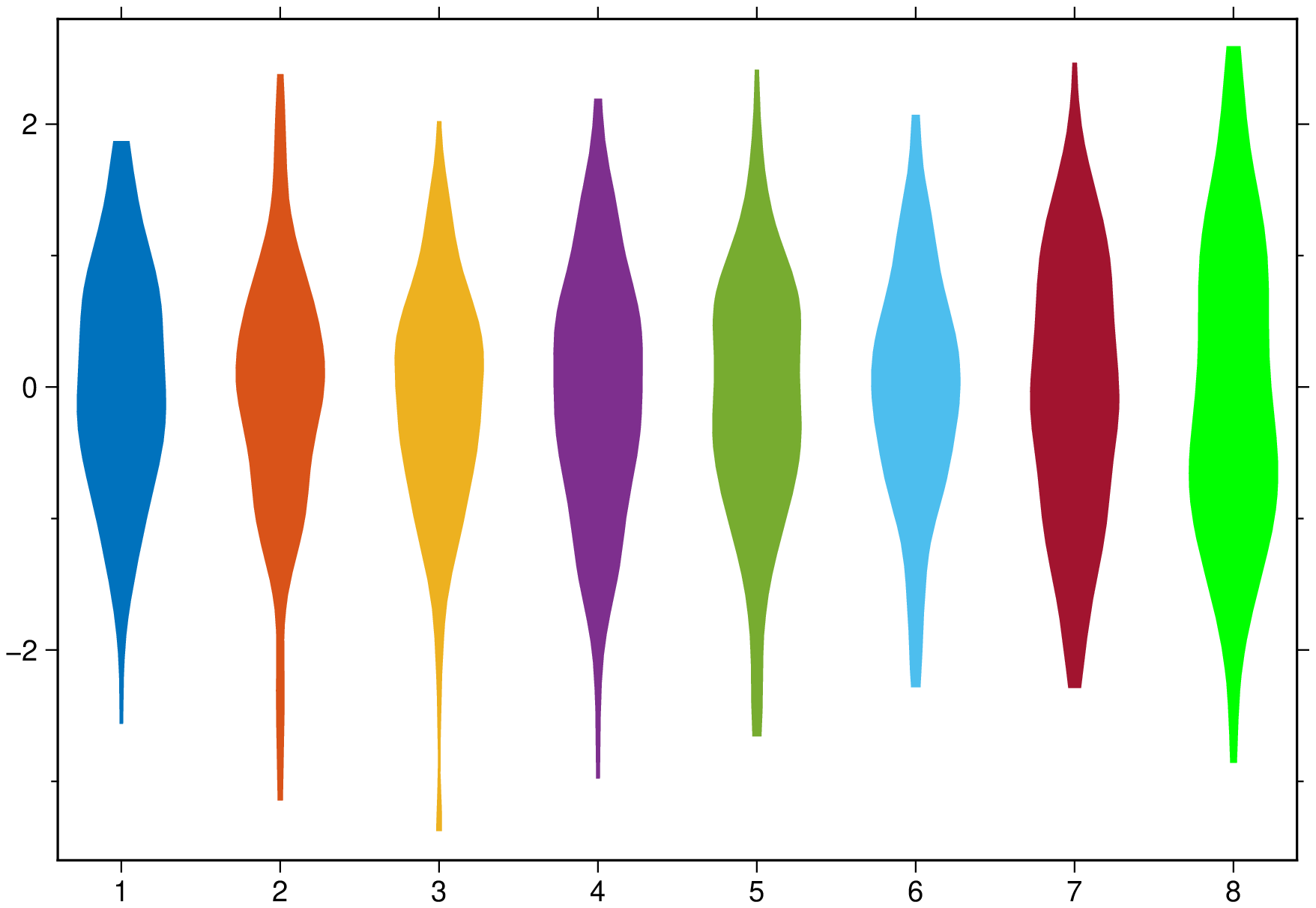

Create a plot with 8 violins colored with the default colors.

using GMT
violin(randn(100,8), fill=true, show=true)

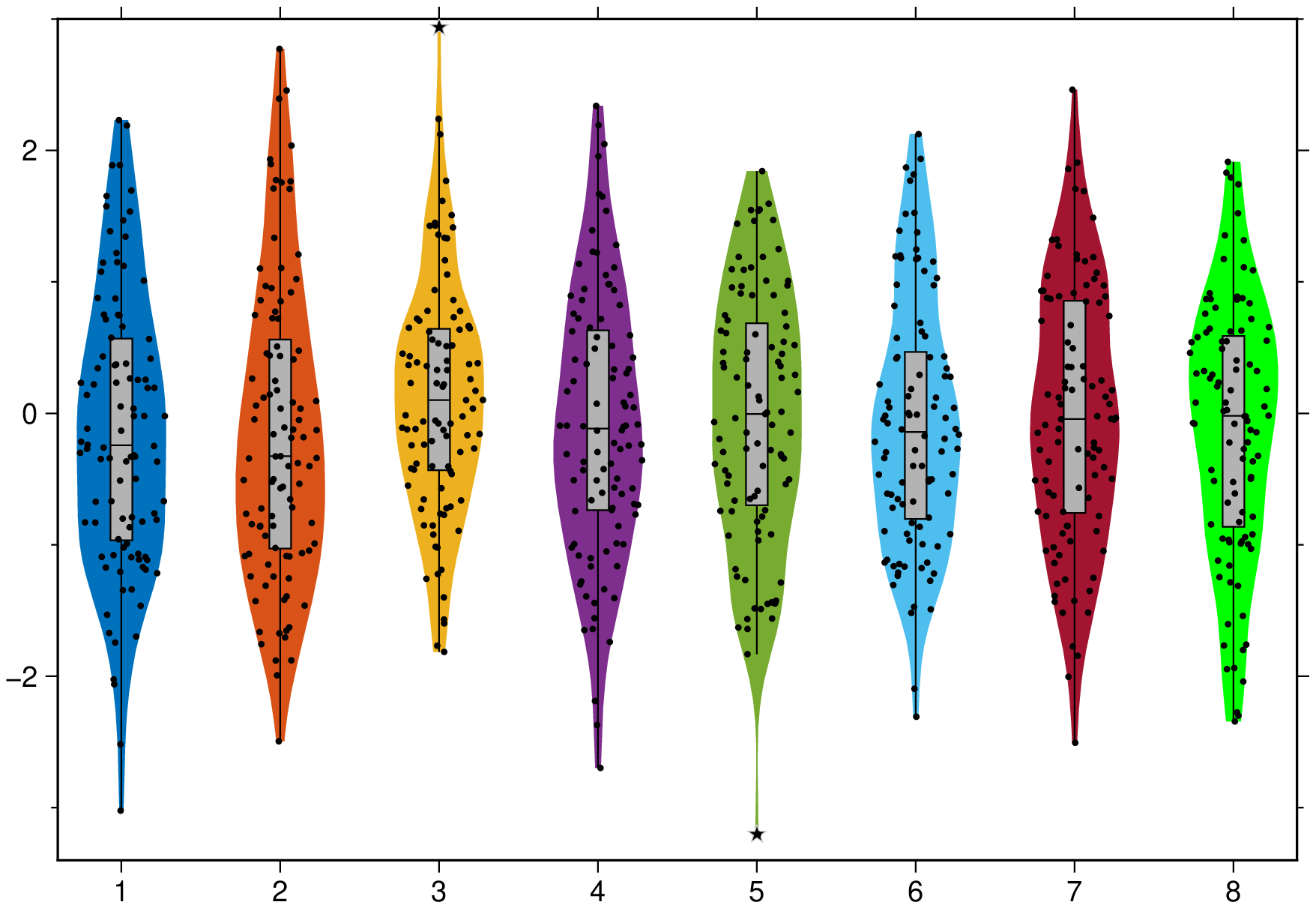

Now add boxplot, scatter and outliers to a plot similar to above. The outliers show as black stars.

using GMT
violin(randn(100,8), fill=true, boxplot=true, scatter=true, outliers=true, show=true)

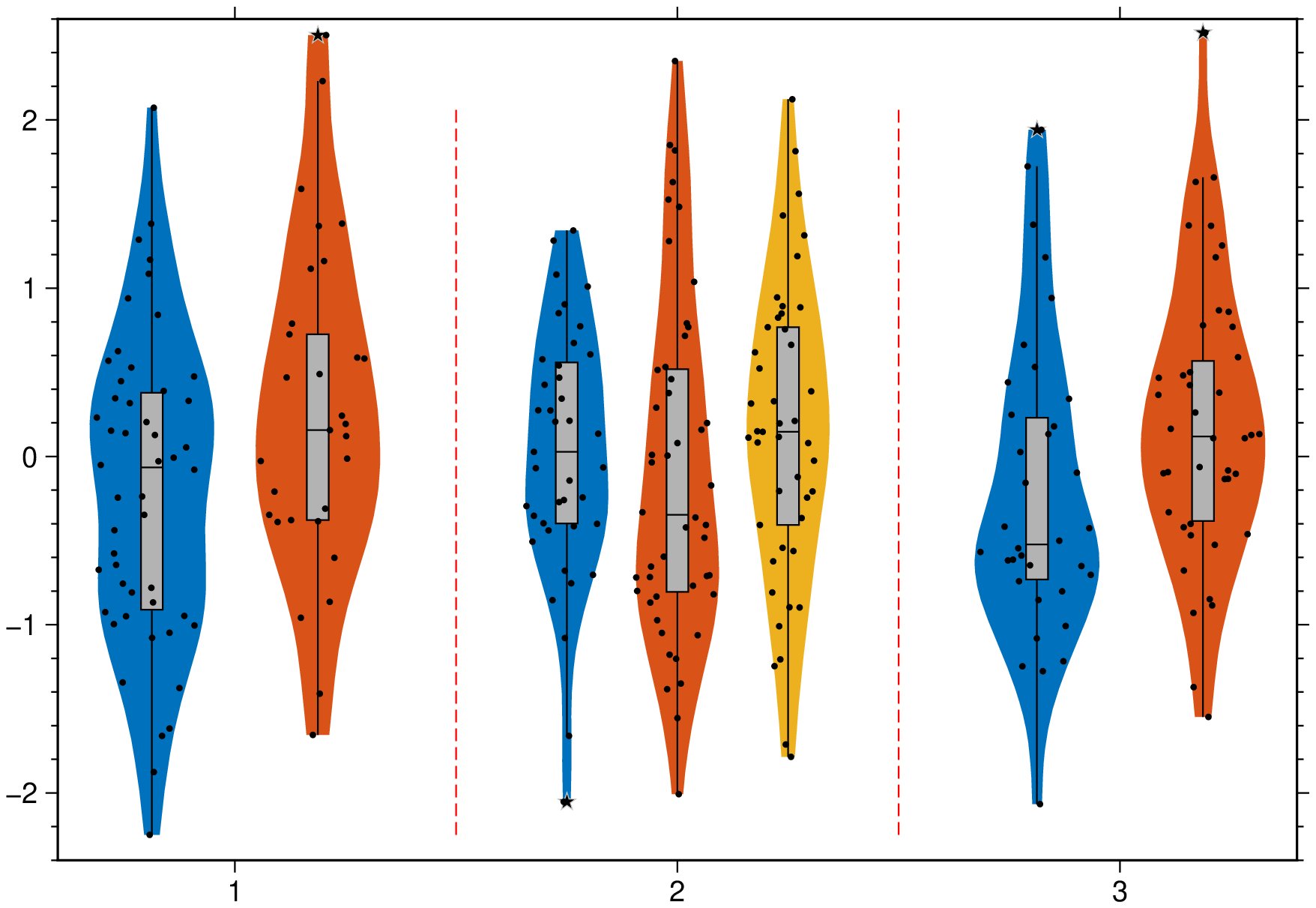

And a group example with red dashed separator lines.

using GMT
vvv = [[randn(50), randn(30)], [randn(40), randn(48), randn(45)], [randn(35), randn(43)]];
violin(vvv, fill=true, boxplot=true, separator=(:red, :dash), scatter=true, outliers=true, show=true)
