contourf

contourf(cmd0::String="", arg1=nothing, arg2=nothing; kwargs...)

keywords: GMT, Julia, filled contour plots, visualization, mapping

Create filled contour mapps.

Description

This module is a wrapper to grdview, contour and grdcontour and as such it works with two different kinds of input data. If input is a grid (either a grid file name or a GMTgrid object) it will make a filled contour with grdview and optionally overlay contours by calling grdcontour. If, on the other hand, the input data is table data file or a Mx3 array (or GMTdataset), it first compute a Delaunay triangulation and makes the plot from it. In this later case, the job is done by contour module alone.

The region option can be used to select a map region larger or smaller than that implied by the extent of the grid.

Required Arguments

The input data set to be filled/contoured. It can be 2-D gridded data GMTgrid) or a Mx3 table (or GNTdataset). In these cases the data type detection is automatic. Alterativelly, one can provide the file name. In that case, if the data has known extensions (.grd or .nc among others for grids or .dat, .bin (need to use iput_type) for tables) the type detection is also automatic. And, for grids, passing a file name is actually the most efficient way os using thsi module. Still, if data type is not automatically detected, we can help the module by passing the grid=true or data=true options.

Not exactly required but convinient, the second input argument can be a GMTcpt object. The advantage of this is that it releases the contour option to pass only options that control what contours to plot.

Optional Arguments

  • A or annot : – annot=annot_int | annot=(int=annot_int, disable=true, single=true, labels=labelinfo)
    annot_int is annotation interval in data units; it is ignored if contour levels are given in a file. [Default is no annotations]. Use annot=(disable=true,) to disable all annotations implied by cont. Alternatively do annot=(single=true, int=val) to plot val as a single contour. The optional labelinfo controls the specifics of the label formatting and consists of a named tuple with the following control arguments Label formatting

  • B or axes or frame
    Set map boundary frame and axes attributes. Default is to draw and annotate left, bottom and vertical axes and just draw left and top axes. More at frame

  • C or cont or contour or contours or levels : – cont=cont_int
    The contours to be drawn may be specified in one of two possible ways:

  1. If cont_int is a GMTcpt object (or a string and has the suffix ".cpt" and can be opened as a file). The color boundaries are then used as contour levels. If the CPT has annotation flags in the last column then those contours will be annotated. By default all contours are labeled; use annot=(disable=true,)) (or annot=:none) to disable all annotations.

  1. If cont_int is a constant or an array it means plot those contour intervals. This works also to draw single contours. E.g. contour=[0] will draw only the zero contour. The annot option offers the same

possibility so they may be used together to plot a single annotated contour and another single non-annotated contour, as in **anot=[10], cont=[5]** that plots an annotated 10 contour and an non-annotated 5 contour. If **annot** is set and **cont** is not, then the contour interval is set equal to the specified annotation interval. If no **contour** option and no *GMTcpt* are passed then for grid a default color map is computed and all of those automatically contours are drwan. Also, no *GMTcpt* and **contour=[array]** computes a cmap with only the contour values specified in *array*. When passing a *Mx3* array or a *GMTdataset* the default behavior is basically the same.

  • E or index : – index=tri_network
    Give a Mx3 array or name of file with network information. Each record must contain triplets of node numbers for a triangle [Default computes these using Delaunay triangulation (see triangulate)].

  • G or labels : – labels=()
    The required argument controls the placement of labels along the quoted lines. Choose among five controlling algorithms as explained in Label formatting

  • J or proj or projection : – proj=<parameters>
    Select map projection. More at proj

  • Q or cut : – cut=np | cut=length&unit[+z]
    Do not draw contours with less than np number of points [Draw all contours]. Alternatively, give instead a minimum contour length in distance units, including c (Cartesian distances using user coordinates) or C for plot length units in current plot units after projecting the coordinates. Optionally, append +z to exclude the zero contour.

  • R or region or limits : – limits=(xmin, xmax, ymin, ymax) | limits=(BB=(xmin, xmax, ymin, ymax),) | limits=(LLUR=(xmin, xmax, ymin, ymax),units="unit") | ...more
    Specify the region of interest. More at limits. For perspective view view, optionally add zmin,zmax. This option may be used to indicate the range used for the 3-D axes. You may ask for a larger w/e/s/n region to have more room between the image and the axes.

  • S or smooth : – smooth=smoothfactor
    Resample the contour lines at roughly every (gridbox_size/smoothfactor) interval. This option should be used only when input data is a table.

  • S or skip : – skip=true|"t"
    Skip all input xyz points that fall outside the region [Default uses all the data in the triangulation]. Alternatively, use **skip="t"* to skip triangles whose three vertices are all outside the region. This option should be used only when input data is a grid.

  • T or ticks : – ticks=(local_high=true, local_low=true, gap=gap, closed=true, labels=labels)
    Will draw tick marks pointing in the downward direction every gap along the innermost closed contours only; set closed=true to tick all closed contours. Use gap=(gap,length) and optionally tick mark length (append units as c, i, or p) or use defaults ["15p/3p"]. User may choose to tick only local highs or local lows by specifying local_high=true, local_low=true, respectively. Set labels to annotate the centers of closed innermost contours (i.e., the local lows and highs). If no labels (i.e, set labels="") is set, we use - and + as the labels. Appending exactly two characters, e.g., labels=:LH, will plot the two characters (here, L and H) as labels. For more elaborate labels, separate the low and hight label strings with a comma (e.g., labels="lo,hi"). If a file is given by cont, and ticks is set, then only contours marked with upper case C or A will have tick marks [and annotations].

  • U or time_stamp : – time_stamp=true | time_stamp=(just="code", pos=(dx,dy), label="label", com=true)
    Draw GMT time stamp logo on plot. More at timestamp

  • V or verbose : – verbose=true | verbose=level
    Select verbosity level. More at verbose

  • W or pen : – pen=(annot=true, contour=true, pen=pen, colored=true, cline=true, ctext=true)
    annot=true if present, means to annotate contours or contour=true for regular contours [Default]. The pen sets the attributes for the particular line. Default pen for annotated contours: pen=(0.75,:black). Regular contours use pen=(0.25,:black). Normally, all contours are drawn with a fixed color determined by the pen setting. This option may be repeated, for example to separate contour and annotated contours settings. For that the syntax changes to use a Tuple of NamedTuples, e.g. pen=((annot=true, contour=true, pen=pen), (annot=true, contour=true, pen=pen)). If the modifier pen=(cline=true,) is used then the color of the contour lines are taken from the CPT (see cont). If instead pen=(ctext=true,) is appended then the color from the cpt file is applied to the contour annotations. Select pen=(colored=true,) for both effects.

  • X or xshift or x_offset : xshift=true | xshift=x-shift | xshift=(shift=x-shift, mov="a|c|f|r")
    Shift plot origin. More at xshift

  • Y or yshift or y_offset : yshift=true | yshift=y-shift | yshift=(shift=y-shift, mov="a|c|f|r")
    Shift plot origin. More at yshift

  • p or view or perspective : – view=(azim, elev)
    Default is viewpoint from an azimuth of 200 and elevation of 30 degrees.
    Specify the viewpoint in terms of azimuth and elevation. The azimuth is the horizontal rotation about the z-axis as measured in degrees from the positive y-axis. That is, from North. This option is not yet fully expanded. Current alternatives are:

    • view=??
      A full GMT compact string with the full set of options.

    • view=(azim,elev)
      A two elements tuple with azimuth and elevation

    • view=true
      To propagate the viewpoint used in a previous module (makes sense only in bar3!)

    More at perspective

  • t or transparency or alpha: – alpha=50
    Set PDF transparency level for an overlay, in (0-100] percent range. [Default is 0, i.e., opaque]. Works only for the PDF and PNG formats.

  • figname or savefig or name : – figname=name.png
    Save the figure with the figname=name.ext where ext chooses the figure image format.

Examples

Using a grid

using GMT

	G = GMT.peaks();
	C = makecpt(T=(-7,9,2));

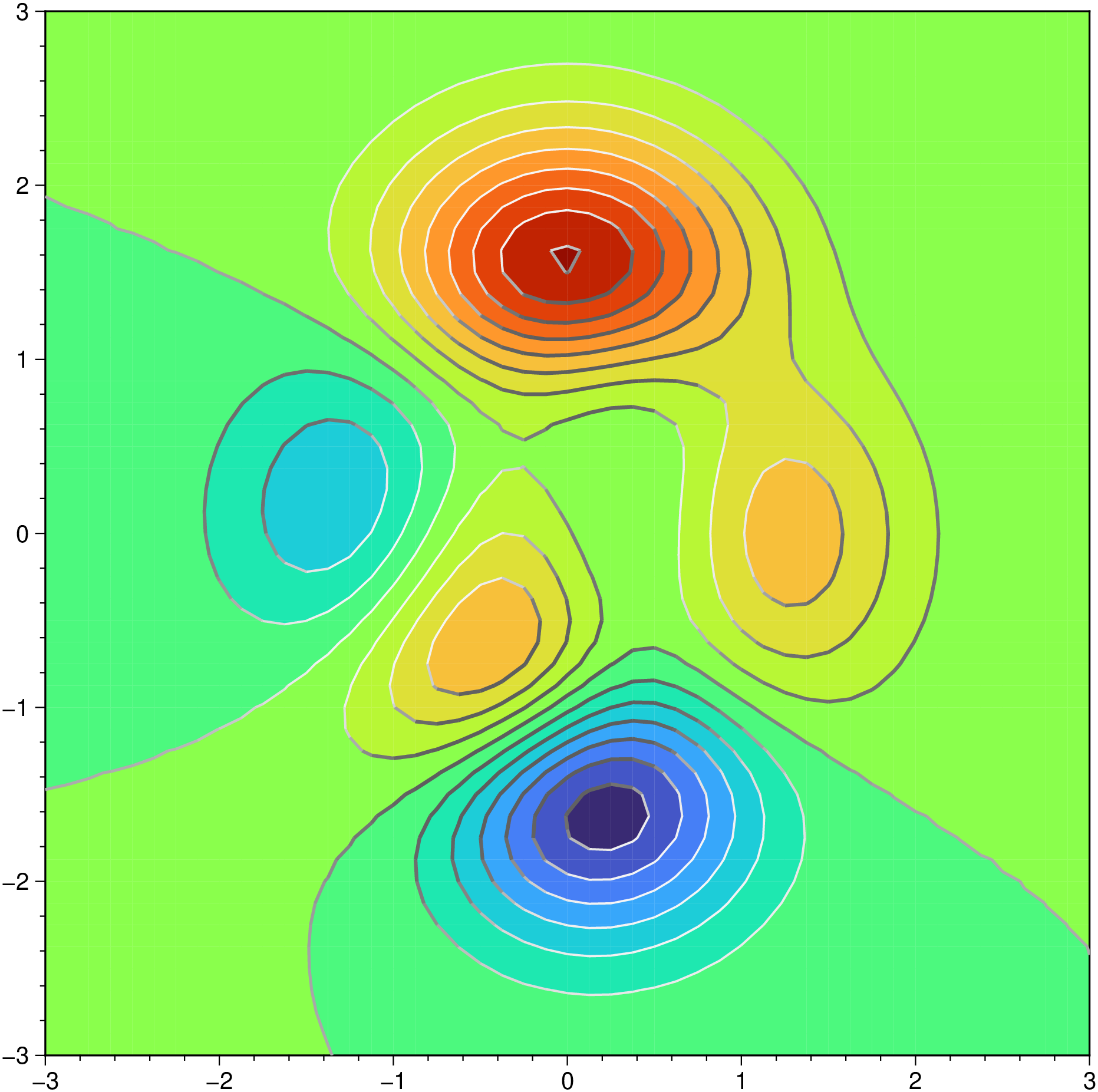

	contourf(G, show=1)

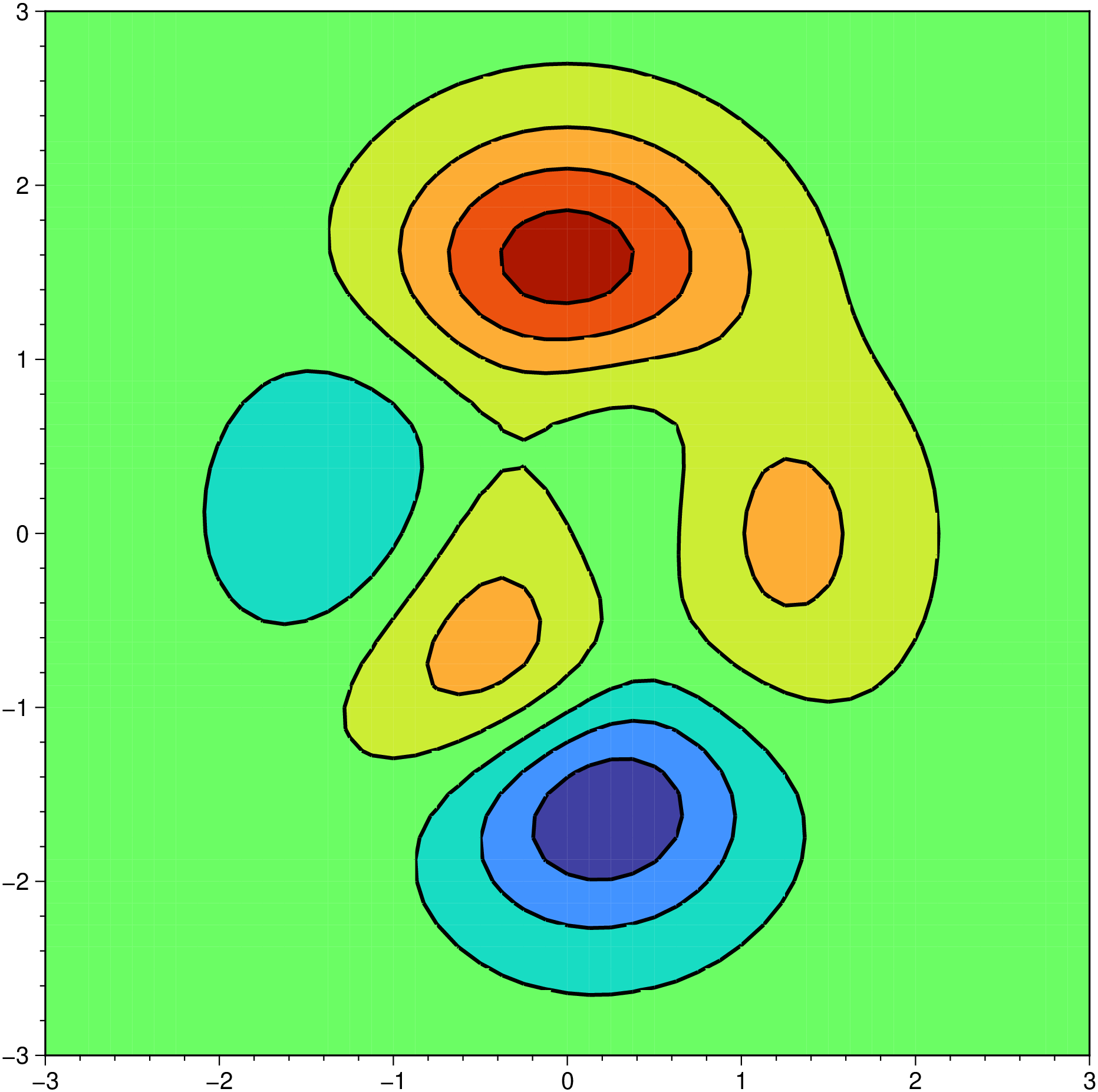

	contourf(G, C=[-2, 0, 2, 5], show=1)
	contourf(G, C, contour=[-2, 0, 2, 5], show=1)
	contourf(G, C, annot=[-2, 0, 2, 5], show=1)
	contourf(G, C, annot=2, show=1)
	contourf(G, C, contour=1, annot=[-2, 0, 2, 5], show=1)
	contourf(G, C, annot=:none, show=1)

Using a table data.

using GMT

	d = [0 2 5; 1 4 5; 2 0.5 5; 3 3 9; 4 4.5 5; 4.2 1.2 5; 6 3 1; 8 1 5; 9 4.5 5];
	contourf(d, limits=(-0.5,9.5,0,5), pen=0.25, labels=(line=(:min,:max),), show=1)
