# quiver

```
quiver(compx, compy; kwargs...)
or
quiver(X, Y, U, V; kwargs...)
```

*keywords: GMT, Julia, arrows, vector plots, mapping*

Plot vector field from two component grids

## Description

Reads two 2-D grid files which represents the *x* and *y* components of a vector field and produces a vector field plot by drawing vectors with orientation and length according to the information in the files. Alternatively, polar coordinate *r*, *theta* grids may be given instead. To replicate the Matlab functioning one can also pass four arrays in input: *X, Y* -> arrays of coordinates as produced by `meshgrid`

; *U, V* horizontal and vertical components.

## Required Arguments

*compx*Contains the x-components of the vector field.*compy*Contains the y-components of the vector field.

## Optional Arguments

**A**or**polar**: –*polar=true*

The grid files contain polar (r, theta) components instead of Cartesian (x, y) [Default is Cartesian components].

**B**or**axes**or**frame**

Set map boundary frame and axes attributes. Default is to draw and annotate left, bottom and vertical axes and just draw left and top axes. More at frame

**C**or**color**or**cmap**or**colorap**or**colorscale**: –*color=cpt*

Where*cpt*is a*GMTcpt*type or a cpt file name (for*grd_z*only). Alternatively, supply the name of a GMT color master dynamic CPT [turbo] to automatically determine a continuous CPT from the grid's z-range; you may round up/down the z-range by adding**+i***zinc*. Yet another option is to specify*color="color1,color2 [,color3 ,...]"*or*color=((r1,g1,b1),(r2,g2,b2),...)*to build a linear continuous CPT from those colors automatically. In this case*color1*etc can be a (r,g,b) triplet, a color name, or an HTML hexadecimal color (e.g. #aabbcc ) (see Setting color). When not explicitly set, but a color map is needed, we will either use the current color map, if available (set by a previous call to*makecpt*), or the default*turbo*color map.

**G**or**fill**: –*fill=fill*

Sets color or shade for vector interiors (see Fill color/pattern) [Default is no fill]. Alternatively, the fill may be set via |-Q|.

**I**or**inc**or**increment**or**spacing**: –*inc=x_inc***|***inc=(x**inc, y*inc)**|***inc="x""multx"["/multy"]*

Only plot vectors at nodes every*x_inc*,*y_inc*apart (must be multiples of original grid spacing). Append**m**for arc minutes or**s**for arc seconds. Alternatively, use**inc="x"**to specify the multiples*multx*[/*multy*] directly [Default plots every node]. Example**inc="x10/5"**to select every other 10 nodes in*x*and 5 nodes in*y*.: by default we estimate good values so that the arrows do no overlap so you may start by jumping this option unless some fine control is desired.*NOTE*

**J**or**proj**or**projection**: –*proj=<parameters>*

Select map projection. More at proj

**N**or**noclip**or**no_clip**:*noclip=true*

Do NOT clip vectors at map boundaries [Default will clip].

**Q**or**vec**or**vector**or**arrow**: –*vector=parameters*

Modify vector parameters. For vector heads, append vector head*size*[Default is 0, i.e., stick-plot]. See Vector Attributes for specifying additional attributes.

**R**or**region**or**limits**: –*limits=(xmin, xmax, ymin, ymax)***|***limits=(BB=(xmin, xmax, ymin, ymax),)***|***limits=(LLUR=(xmin, xmax, ymin, ymax),units="unit")***|**...more

Specify the region of interest. More at limits. For perspective view**view**, optionally add*zmin,zmax*. This option may be used to indicate the range used for the 3-D axes. You may ask for a larger w/e/s/n region to have more room between the image and the axes.

**S**or**vscale**or**vec_scale**: –*vscale=(inverse=len, length=len, scale=xx, scale**at*lat=??, refsize=size)

Sets scale for vector plot lengths in data units per plot distance measurement unit. Append**c**,**i**, or**p**to indicate the desired plot distance measurement (then**xx**must be a string) unit (cm, inch, or point); if no unit is given we use the default value that is controlled by`PROJ\_LENGTH\_UNIT`

. Vector lengths converted via plot unit scaling will plot as straight Cartesian vectors and their lengths are not affected by map projections and coordinate locations. For geographic data you may alternatively give*scale*in data units per map distance unit (see`Units`

). Then, your vector magnitudes (in data units) are scaled to map*distances*in the given distance unit, and finally projected onto the Earth to give*plot*dimensions. These are geo-vectors that follow great circle paths and their lengths may be affected by the map projection and their coordinates. Finally, use**vscale=(inverse=len,...)**if it is simpler to give the reciprocal scale in plot length or distance units per data unit. Alternatively, use**vscale=(length=len,...)**to set a fixed plot`len`

for all vectors. To report the minimum, maximum, and mean data and plot vector lengths of all vectors plotted, use**verbose**option. If an automatic legend entry is desired via**label**, or or two modifiers will be required:

- `scale_at_lat=slon`

or `scale_at_lat=(slon,slat)`

or `scale_at_lat=true`

controls where on a geographic
map a geovector's *refsize* length applies. The modifier is neither needed nor available when plotting
Cartesian vectors. The length is calculated for latitude *slat* (optionally supply longitude *slon* for
oblique projections [default is central meridian]). If `scale_at_lat=true`

then we select the reference
length origin to be the middle of the map.
- `refsize=size`

sets the desired reference vector magnitude in data units. E.g., for a reference length
of 25 mm/yr for plate motions, use modifier `refsize=25`

with a corresponding option
**label="Velocity (25 mm/yr)"**. If *refsize* is not specified we default to the `scale`

given above.

**T**or**sign_scale**: –*sign_scale=true*

Means the azimuths of Cartesian data sets should be adjusted according to the signs of the scales in the x- and y-directions [Leave alone]. This option can be used to convert vector azimuths in cases when a negative scale is used in one of both directions (e.g., positive down).

**U**or**time_stamp**: –*time_stamp=true***|***time_stamp=(just="code", pos=(dx,dy), label="label", com=true)*

Draw GMT time stamp logo on plot. More at timestamp

**V**or*verbose*: –*verbose=true***|***verbose=level*

Select verbosity level. More at verbose

**W**or**pen**=`pen`

Set pen attributes for the arrow stem [Defaults: width = default, color = black, style = solid]. See Pen attributes

**X**or**xshift**or**x_offset**:*xshift=true***|***xshift=x-shift***|***xshift=(shift=x-shift, mov="a|c|f|r")*

Shift plot origin. More at xshift

**Y**or**yshift**or**y_offset**:*yshift=true***|***yshift=y-shift***|***yshift=(shift=y-shift, mov="a|c|f|r")*

Shift plot origin. More at yshift

**figname**or**savefig**or**name**: –*figname=*`name.png`

Save the figure with the`figname=name.ext`

where`ext`

chooses the figure image format.

**Z**or**azimuth**: –*azimuth=true*

The theta grid provided contains azimuths rather than directions (implies`polar=true`

).

**f**or**colinfo**: –*colinfo=??*

Specify the data types of input and/or output columns (time or geographical data). More at

**l**or**legend**: –*legend=params*

Add a map legend entry to the session legend information file for the current plot (modern mode only). While this option is not expanded, see*params*at The -l option

**p**or**view**or**perspective**: –*view=(azim, elev)*

Default is viewpoint from an azimuth of 200 and elevation of 30 degrees.

Specify the viewpoint in terms of azimuth and elevation. The azimuth is the horizontal rotation about the z-axis as measured in degrees from the positive y-axis. That is, from North. This option is not yet fully expanded. Current alternatives are:*view=??*

A full GMT compact string with the full set of options.*view=(azim,elev)*

A two elements tuple with azimuth and elevation*view=true*

To propagate the viewpoint used in a previous module (makes sense only in`bar3!`

)

More at perspective

**t**or**transparency**or**alpha**: –*alpha=50*

Set PDF transparency level for an overlay, in (0-100] percent range. [Default is 0,*i.e.*, opaque]. Works only for the PDF and PNG formats.

**Units**

For map distance unit, append unit d for arc degree, m for arc minute, and s for arc second, or e for meter [Default unless stated otherwise], f for foot, k for km, M for statute mile, n for nautical mile, and u for US survey foot. By default we compute such distances using a spherical approximation with great circles (-jg) using the authalic radius (see `PROJ_MEAN_RADIUS`

). You can use -jf to perform “Flat Earth” calculations (quicker but less accurate) or -je to perform exact geodesic calculations (slower but more accurate; see `PROJ_GEODESIC`

for method used).

.. include:: explain*vectors.rst*

## Examples

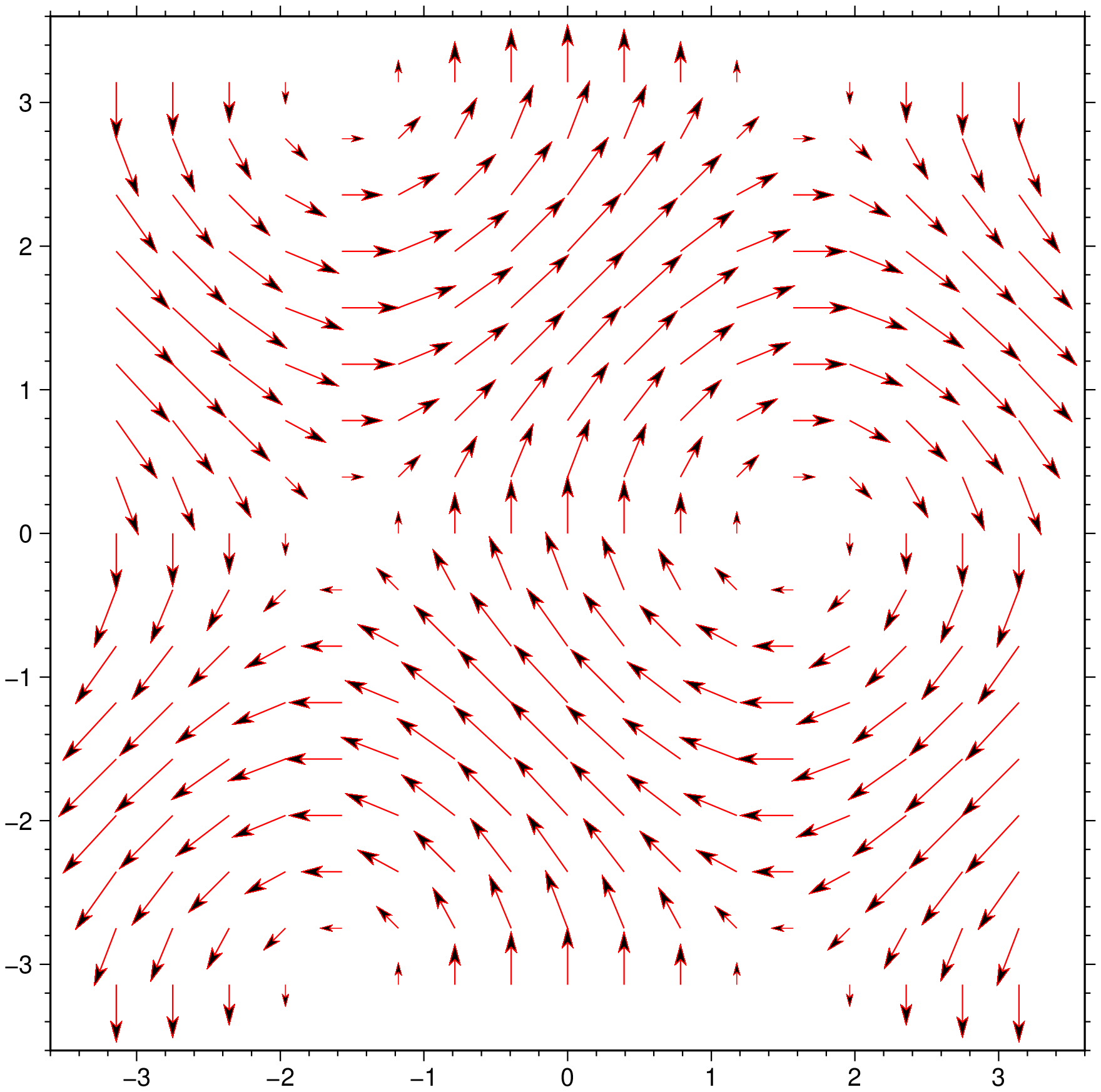

A nice arrow field

```
using GMT
X,Y = meshgrid(-pi:pi/8:pi,-pi:pi/8:pi);
U = sin.(Y);
V = cos.(X);
quiver(X, Y, U, V, region=(-3.6,3.6,-3.6,3.6), fill=:black, lc=:red, show=true)
```

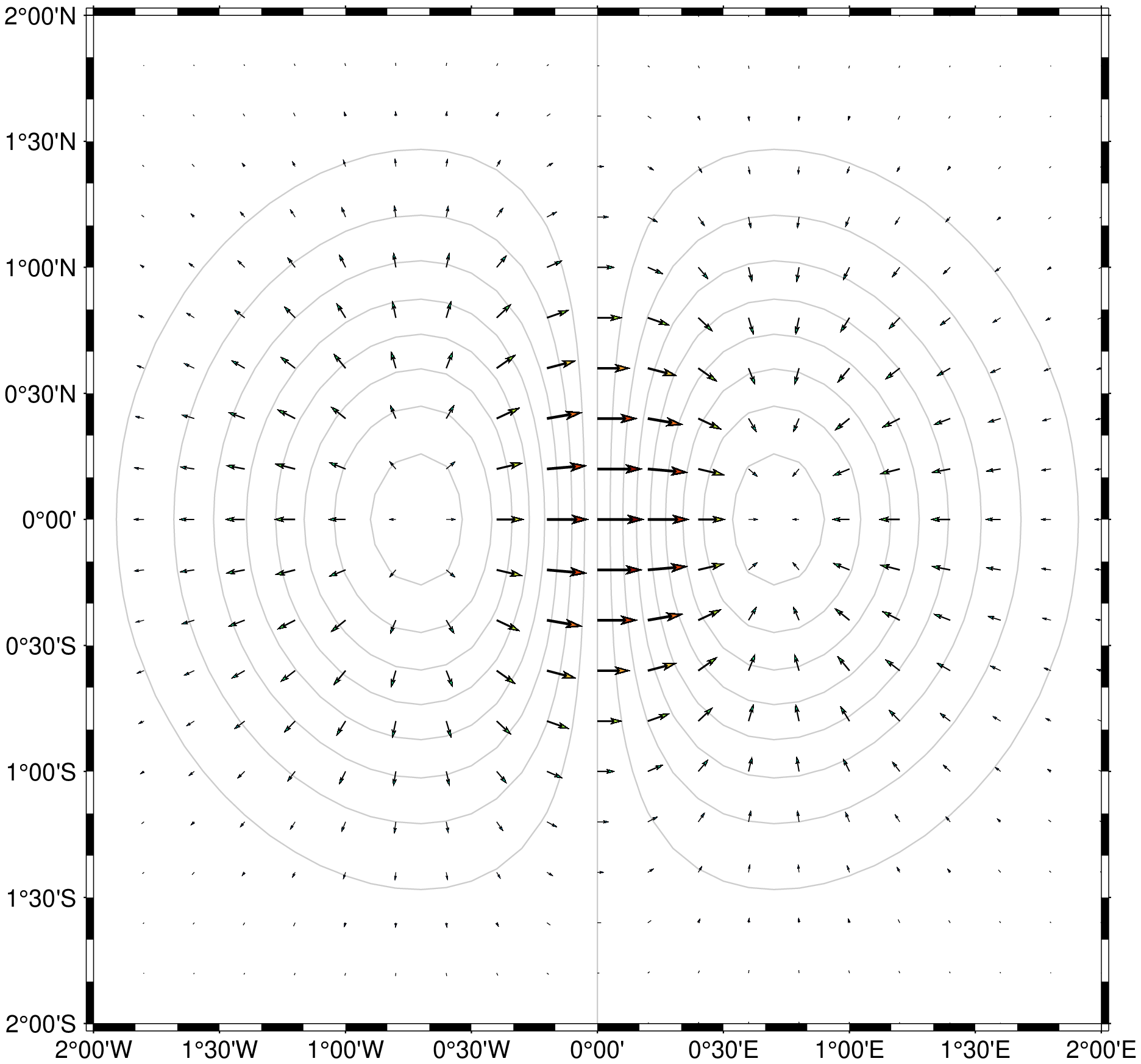

For simplicity let's create a grid using grdmath and compute its horizontal derivatives. Then we plot them as an arrow field.

```
using GMT
G = gmt("grdmath -R-2/2/-2/2 -I0.1 X Y R2 NEG EXP X MUL");
dzdy = gmt("grdmath ? DDY", G);
dzdx = gmt("grdmath ? DDX", G);
grdcontour(G, annot=:none, pen=:gray80)
quiver!(dzdx, dzdy, cmap=:turbo, lw=1, show=true)
```

## Vector scaling and unit effects

The scale given via **vscale** may require some consideration. As explained in **vscale**, it is specified in data-units per plot or distance unit. The plot or distance unit chosen will affect the type of vector you select. In all cases, we first compute the magnitude *r* of the user's data vectors at each selected node from the *x* and *y* components (unless you are passing *r*, *theta* grids directly with **polar**). These magnitudes are given in whatever data units they come with. Let us pretend our data grids record secular changes in the Earth's magnetic horizontal vector field in units of nTesla/year, and that at a particular node the magnitude is 28 nTesla/year (in some direction). If you specify the scale using plot distance units (**c** | **i** | **p**) then you are selecting *Cartesian* vectors. Let us further pretend that you selected **vscale="10c"** as your scale option. That means you want 10 nTesla/year to equate to a 1 cm plot length. Internally, we convert this scale to a plot scale of 1/10 = 0.1 cm per nTesla/year. Given our vector magnitude of 28 nTesla/year, we multiply it by our plot scale and finally obtain a vector length of 2.8 cm, which is then plotted. The user's data units do not enter of course, i.e., they always cancel [Likewise, if we had used **vscale="25i"** (25 nTesla/year per inch) the plot scale would be (1/25) = 0.04 inch per nTesla/year and the vector plot lengths would be 28 * 0.04 inch = 1.12 inch]. If we now wished to plot a 10 nTesla/year reference vector in the map legend we would plot one that is 10 times 0.1 cm = 1 cm long since the scale length is *constant* regardless of map projection and location. A 10 nTesla/year vector will be 1 cm anywhere.

Let us contrast this behavior with what happens if we use a geographic distance unit instead, say **vscale="0.5k"** (0.5 nTesla/year per km). Internally, this becomes a map scale of 2 km per nTesta/year. Given our node magnitude of 28 nTesla/year, the vector length will be 28 x 2 km = 56 km. Again, the user's data unit do not enter. Now, that vector length of 56 km must be projected onto the Earth, and because of map distortions, a 56 km vector will be mapped to a length on the plot that is a function of the user's map projection, the map scale, and possibly the location on the map. E.g., a 56 km vector due east at Equator on a Mercator map would seem to equal ~0.5 degree longitude but at 60 north it would be more like ~1 degree longitude. A consequence of this effect is that a user who wants to add a 10 nTesla/year reference vector to a legend faces the same problem we do when we wish to draw a 100 km map scale on a map: the plotted length usually will depend on latitude and hence that reference scale is only useful around that latitude.

This brings us to the inverse scale option, **vscale=(inverse=len,...)**. This variant is useful when providing the inverse of the scale is simpler. In the Cartesian case above, we could instead give **vscale=(inverse="0.1c")** which would directly imply a plot scale of 0.1 cm per nTesla/year. Likewise, for geographic distances we could give **vscale=(inverse="2k")** for 2 km per nTesla/year scale as well. As the **inverse** argument increases, the plotted vector length increases as well, while for plain **vscale** the plot length decreases with increasing scale.

## Notes

Be aware that using **inc** may lead to aliasing unless your grid is smoothly varying over the new length increments. It is generally better to filter your grids and resample at a larger grid increment and use these grids instead of the originals.
